SSCD300-1500-3200 High Torque Measurement Accuracy Low Maintenance Diesel Engine Electric Dynamometer Test Bench Overview

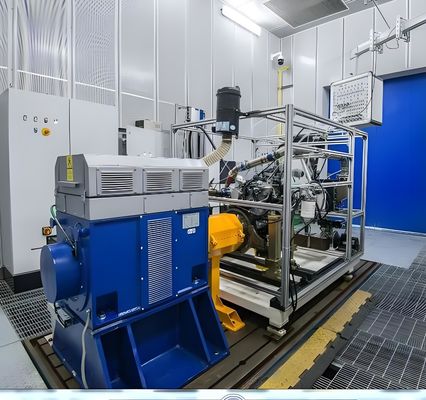

The 300kW diesel engine electric dynamometer test bench is a professional test platform integrating electric dynamometer technology and intelligent control, which quantitatively assesses engine performance through full-condition simulation and plays a core role in R&D verification and mass production quality control. ​
​
The test bench adopts a modular integrated design. Its core function is to simulate engine load conditions through an electric dynamometer, combined with a high-precision sensor array and an intelligent control system, to achieve real-time collection of power parameters (power/torque/speed), economic indicators (fuel consumption), and emission data. The test bench needs to be equipped with a professional vibration-reducing foundation (natural frequency ≤5Hz) and a soundproof cabin (noise reduction ≥45dB) to ensure the stability of the test environment.
​
SSCD300-1500-3200 High Torque Measurement Accuracy Low Maintenance Diesel Engine Electric Dynamometer Test Bench Core Components

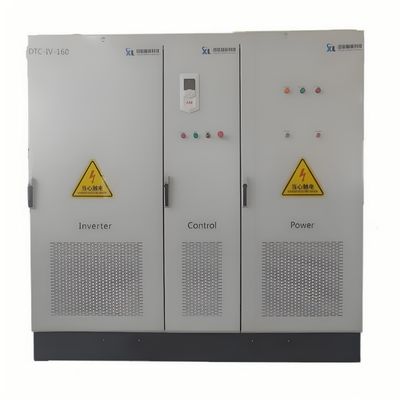

(1) Electric dynamometer system

Model configuration: Standard 350kW AC asynchronous electric dynamometer, with four-quadrant operation capability (power generation/electric mode switching time ≤20ms)

Technical advantages: Dynamic response time < 10ms (torque step control), energy feedback efficiency ≥95% (energy recovery through grid-connected inverter)

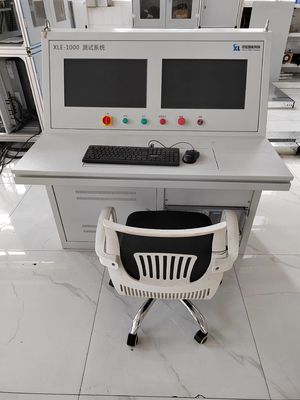

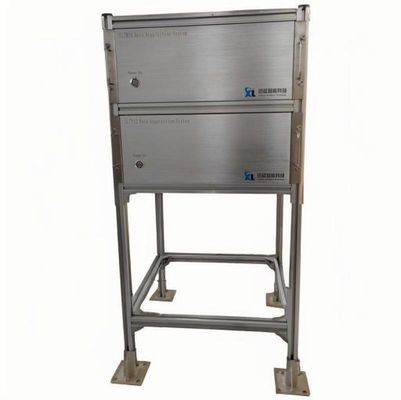

(2) Intelligent measurement and control system

Hardware platform: PLC (ABB) + Industrial PC (ADVANTECH) architecture, supports 16-channel synchronous sampling (sampling rate 1kHz)

Software features:

Preset test condition library (including 12 standard procedures such as ISO 8178 steady-state cycle, WLTC transient cycle)

Real-time data visualization (supports dynamic generation of torque-speed 3D MAP)

Level 3 Fault warning (warning response time ≤500ms)

(3) Auxiliary function system

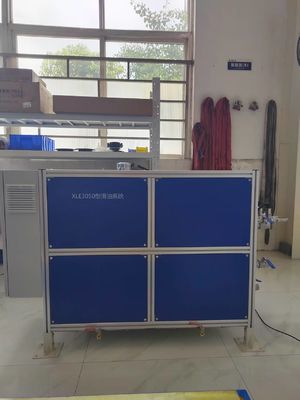

1.Fuel supply unit:

High-pressure common rail simulation device (adjustable from 0 to 180MPa, flow control accuracy ±0.3% FS)
Multi-grade fuel switching system (supports automatic switching between 0# and -10# diesel)

2. Thermal management unit:
150kW plate heat exchanger system (temperature control range 20-110 ° C, accuracy ±0.5 ° C)

Intelligent fan frequency conversion control (automatically adjust cooling power according to coolant temperature)

3. Emission test unit:
Five-component gas analyzer (CO/HC/NOx measurement accuracy ±1%, O₂/CO₂ measurement accuracy ±0.5%)

Particulate matter sampling system (PM measurement lower limit 0.01mg/m³, compliant with ISO 16183 standard)

SSCD300-1500-3200 High Torque Measurement Accuracy Low Maintenance Diesel Engine Electric Dynamometer Test Bench Technical Parameters

SSCD300-1500-3200 High Torque Measurement Accuracy Low Maintenance Diesel Engine Electric Dynamometer Test Bench Typical Application Scenarios

(1)Research and development testing
Power performance development: Complete mapping of the external characteristic curve (torque fluctuation ≤1.2% at full speed range), and optimize the fuel injection advance angle to match the turbocharger

Emission optimization verification: Support for National VI b emission certification tests (NOx emission control accuracy ±2%), and evaluation of SCR system efficiency

Electronic fuel injection system calibration: Test the cold start fuel injection strategy through the reverse drag function (electric mode power ≥50kW)

(2) Reliability validation
Durability performance test: Perform 1000 hours of intensive durability cycles (load fluctuation ≤3%) and monitor cylinder liner wear ≤0.05mm
Environmental adaptability test: Simulated high altitude (4500m, intake oxygen concentration 11.3%) and extreme cold (-30 ° C) start-up performance

(3) Production quality control
Off-line full inspection: 10-minute rapid test (covering 15 key indicators), power consistency controlled within ±1.5%

Process validation: Performance comparison after component changes (e.g. Fuel consumption deviation after fuel injector replacement ≤0.8%)

The test bench, through the deep integration of electric dynamometer technology and intelligent control, achieves full process test coverage from R&D to mass production, providing precise quantitative data support for the technical upgrade of 300kW class diesel engines.
