132kW 0.05%FS Measurement Accuracy Gasoline Engine Electric Dynamometer Test Bench System
Product Specifications
| Attribute |
Value |
| Rated Power |
132kW |
| Rated Torque |
420Nm |
| Max Speed |
9000rpm |
| Rated speed |
3000rpm |
| Torque Measurement Accuracy |
0.05%FS |
| Overload capacity |
120% |
| Service temperature |
-40 to 60℃ |
| Use altitude |
<2000m |
| Rated frequency |
50Hz |
| Speed Measurement Accuracy |
±1rpm |
System Overview

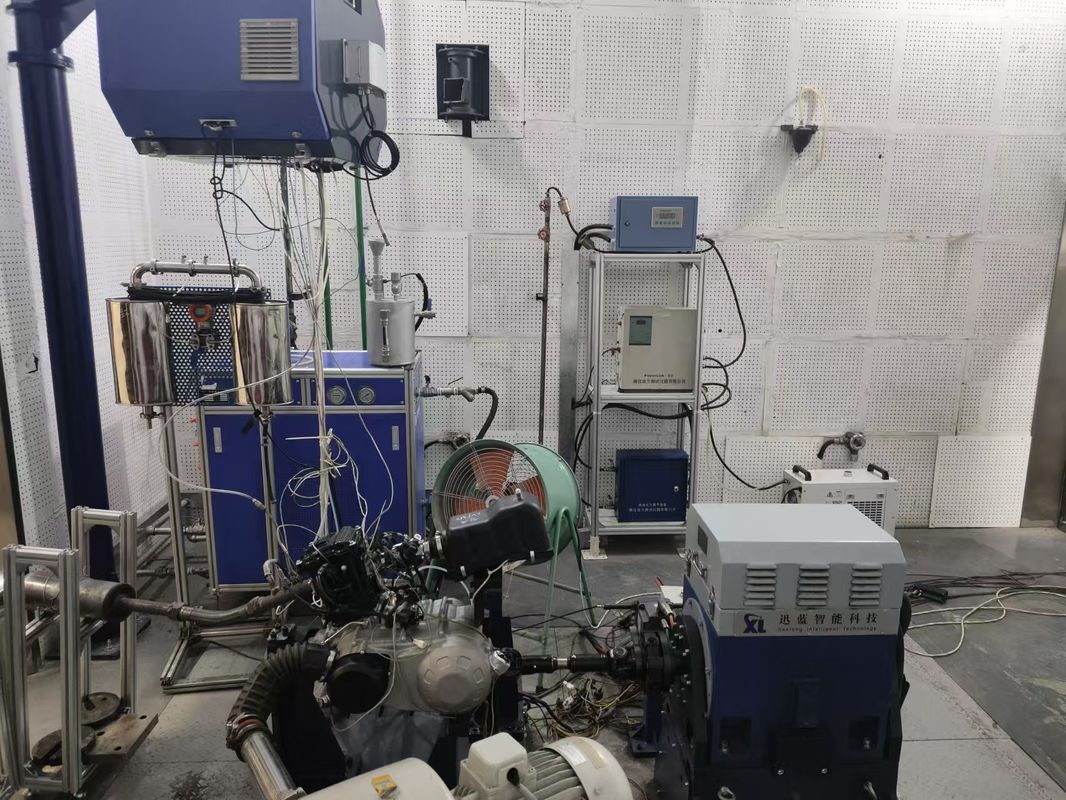

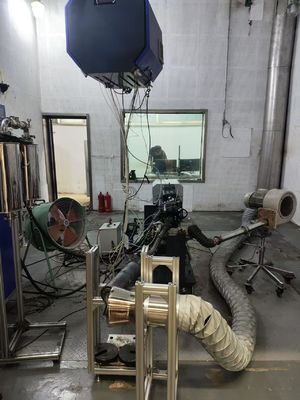

The SSCG132-3000-9000 132kW Gasoline Engine Electric Dynamometer Test Bench System is high-performance power testing equipment that utilizes advanced energy feedback technology to simulate complex and variable real-world operating conditions, enabling precise testing and evaluation of gasoline engine performance.
Factory Installation Requirements
| Parameter |
Value |
Parameter |
Value |
| Altitude |
Less than 1000 meters |
Factory humidity |
≤ 80% |
| Foundation thickness |
＞180mm |
Factory temperature |
5 °C～40°C |
| Factory floor bearing capacity |
3t/㎡ |
Power supply |
380V ± 10 % three-phase 50Hz |
Reference Standards
- GB/T 18297-2024 "Performance test code for road vehicle engines" - Details test procedures and data processing methods for engine power, torque, fuel consumption, and other performance parameters.
- GB/T 19055-2024 "Reliability test methods for motor vehicle engines" - Defines test condition settings, operating procedure specifications, and performance evaluation criteria for engine reliability testing.
System Components

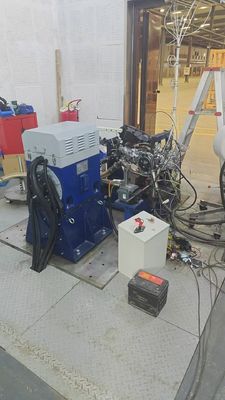

- Electric dynamometer: Consists of an AC motor, mounting bracket, and German HBM T40B series torque flange for accurate torque measurement and loading/dragging operations.

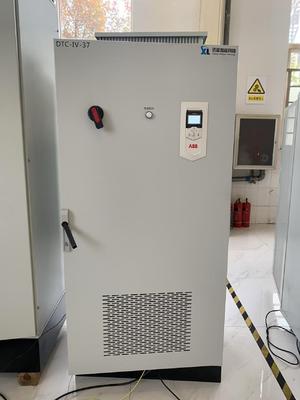

- ABB ACS880 variable frequency inverter system: Controls the electric dynamometer and feeds generated electrical energy back to the power grid.

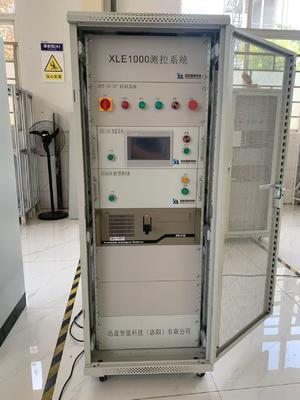

- XLE-1000 measurement and control system and software: Provides overall test bench control, condition setting, and automated test processes.
- Data acquisition system: Collects and processes engine parameters through temperature and pressure sensors.
- Motor-type throttle actuator: Adjusts throttle openings for dynamic engine tests.
- Transient fuel consumption meter and fuel boost/pressure regulating device: Measures fuel consumption and ensures stable fuel pressure.
- Coolant temperature control device: Precisely controls engine coolant temperature.
Technical Parameters
| Parameter Category |
Technical Indicators |
| Rated power |
132kW |
| Rated torque |
420Nm |
| Constant torque measurement range |
0-3000rpm |
| Constant speed measurement range |
3000-9000rpm |
| Torque measurement range |
0-420Nm |
| Torque measurement accuracy |
± 0.15%FS |
| Dynamic response time |
≤ 80ms |
| Energy feedback efficiency |
≥ 97% |
| Operating voltage |
AC 380V ±10% |
| Frequency |
50Hz |
Core Advantages
- High compatibility: Seamlessly connects with engine controllers and user-owned devices without additional modifications.
- Fully automatic testing: Preset programs automatically adjust throttle and load parameters to complete condition simulation.
Model List
| Model |
Power (KW) |
Torque (Nm) |
Rated Speed (rpm) |
Max Speed (rpm) |
Torque Measurement Accuracy |
| SSCG30-3000/10000 |
30 |
95 |
3000 |
10000 |
0.2%FS |
| SSCG45-3000/10000 |
45 |
143 |
3000 |
10000 |
0.2%FS |
| SSCG60-3000/10000 |
60 |
191 |
3000 |
10000 |
0.2%FS |
| SSCG90-3000/10000 |
90 |
286 |
3000 |
10000 |
0.2%FS |
| SSCG110-3000/10000 |
110 |
350 |
3000 |
10000 |
0.2%FS |
| SSCG160-3000/10000 |
160 |
509 |
3000 |
10000 |
0.2%FS |
| SSCG200-3000/8000 |
200 |
637 |
3000 |
8000 |
0.2%FS |
| SSCG250-3000/8000 |
250 |
796 |
3000 |
8000 |
0.2%FS |
| SSCG300-3000/7500 |
300 |
955 |
3000 |
7500 |
0.2%FS |
| SSCG350-3000/7500 |
350 |
1114 |
3000 |
7500 |
0.2%FS |
| SSCG400-3000/7500 |
400 |
1273 |
3000 |
7500 |
0.2%FS |
| Can be customized |
Application Areas
- Research and development of high-performance automobile engines: Simulates high-speed and high-load conditions to test power, fuel consumption, and emissions.
- Aviation ground support equipment power test: Ensures reliable operation in harsh environments.
- Development of special vehicle power systems: Evaluates engine performance under complex terrain and weather conditions.
- Performance testing of small power generation equipment: Tests engine power, frequency, and voltage regulation accuracy.
